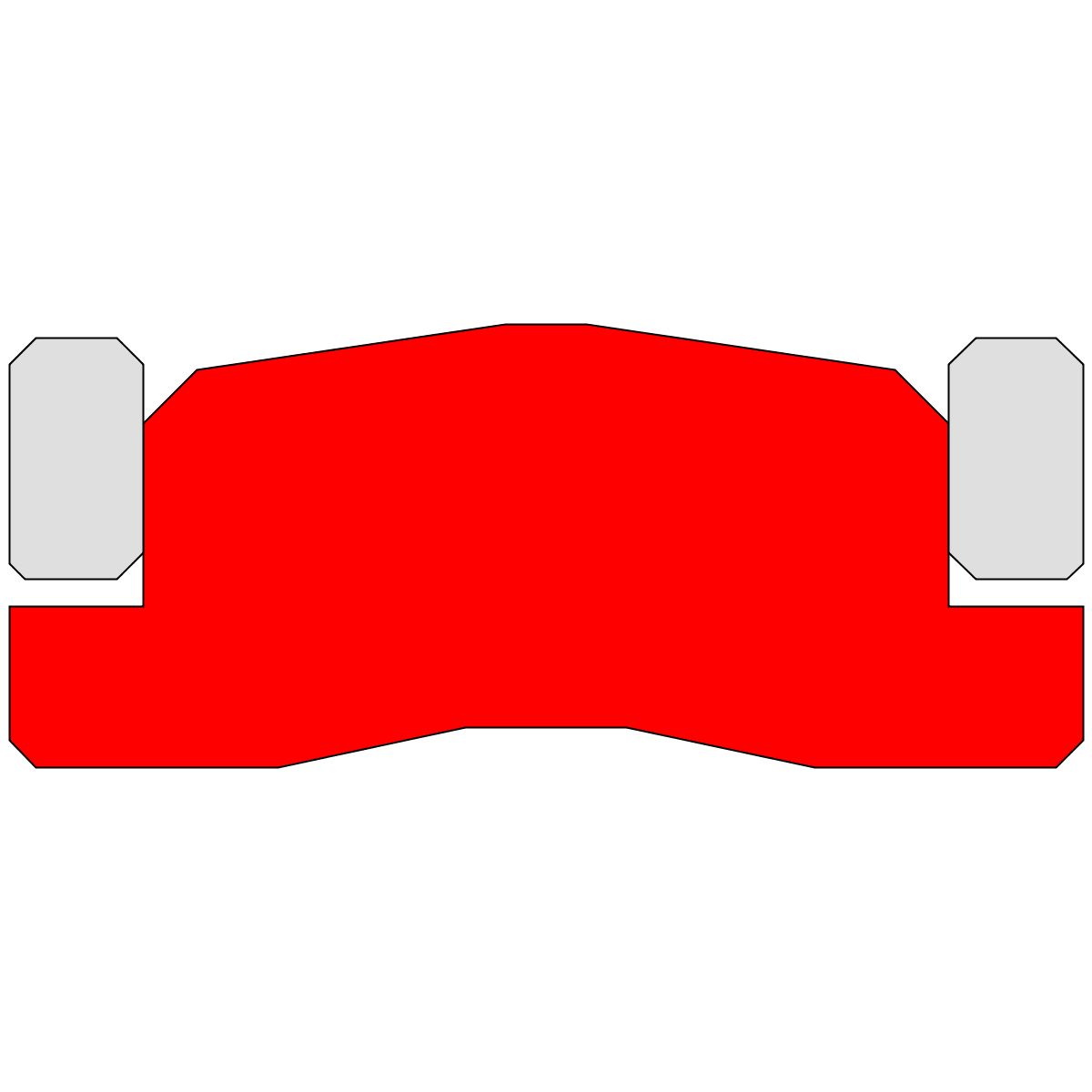

Select Product Type …P50
Double acting piston seal, designed with interference on the ID which provides a good static fit in the groove. Consisting of one elastic sealing element and two back-up elements. Useable for short and long stroke lengths. Good static and dynamic sealing performance. High frictional force.
-30°C to +105°C
-30°C to +105°C
-30°C to +105°C
0.5 m/s
0.5 m/s
0.5 m/s
400 bar/5800 psi*
400 bar/5800 psi*
400 bar/5800 psi*
* (1500 bar static)
PU Red U203-95
PU MoS2 Grey U203-GM95
PU 57 MoS2 Grey U203-GM95
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE

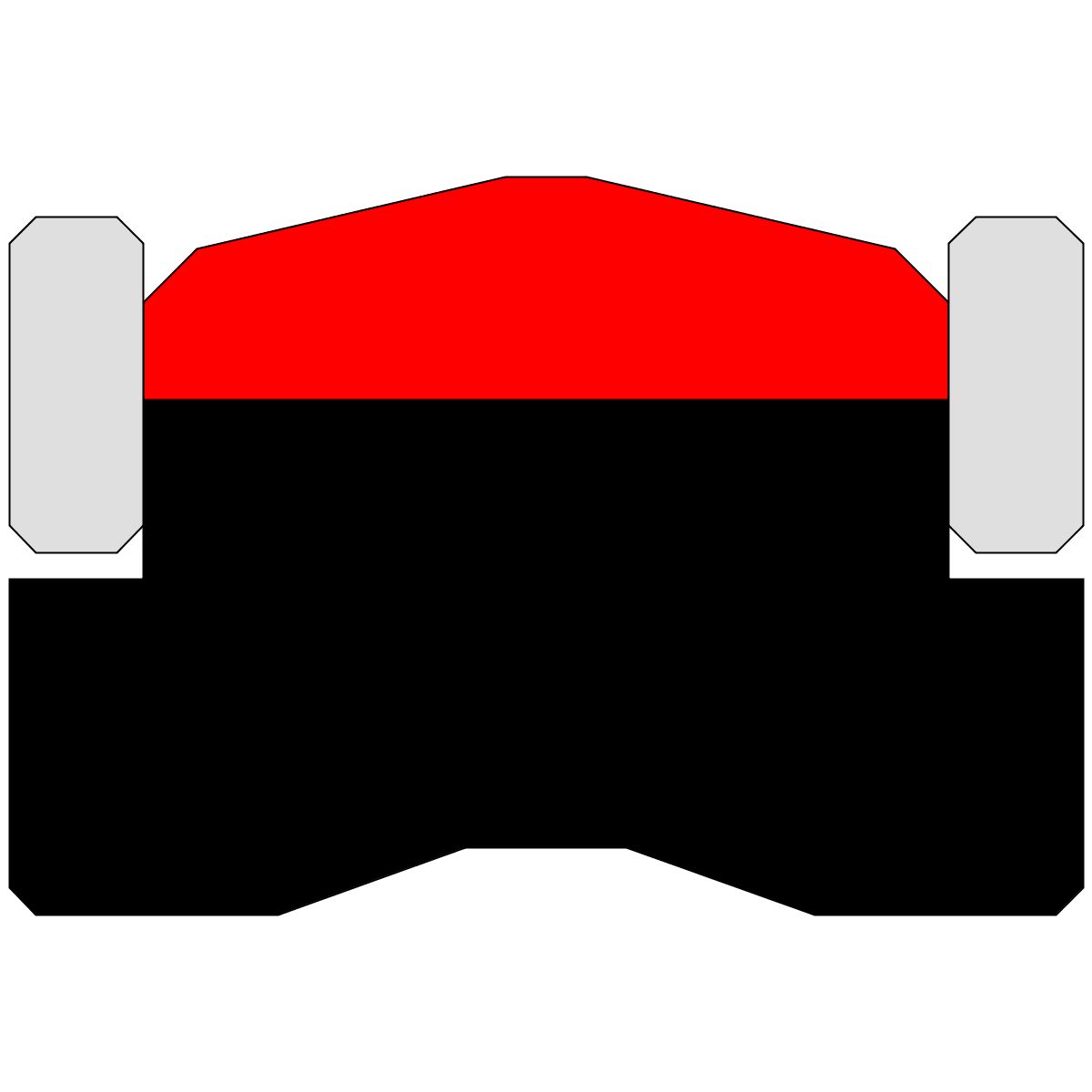

P51
Double acting piston seal, designed with interference on the ID which provides a good static fit in the groove. Consisting of one gliding, one energizing and two back-up elements. Useable for short and long stroke lengths. Good static and dynamic sealing performance. High frictional force. No drag pressure build-up.
-30°C to +105°C
-30°C to +105°C
-30°C to +105°C
0.5 m/s
0.5 m/s
0.5 m/s
400 bar/5800 psi*
400 bar/5800 psi*
400 bar/5800 psi*
* (1500 bar static)
PU Red U203-95
PU MoS2 Grey U203-GM95
PU 57 MoS2 Grey U203-GM95
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE

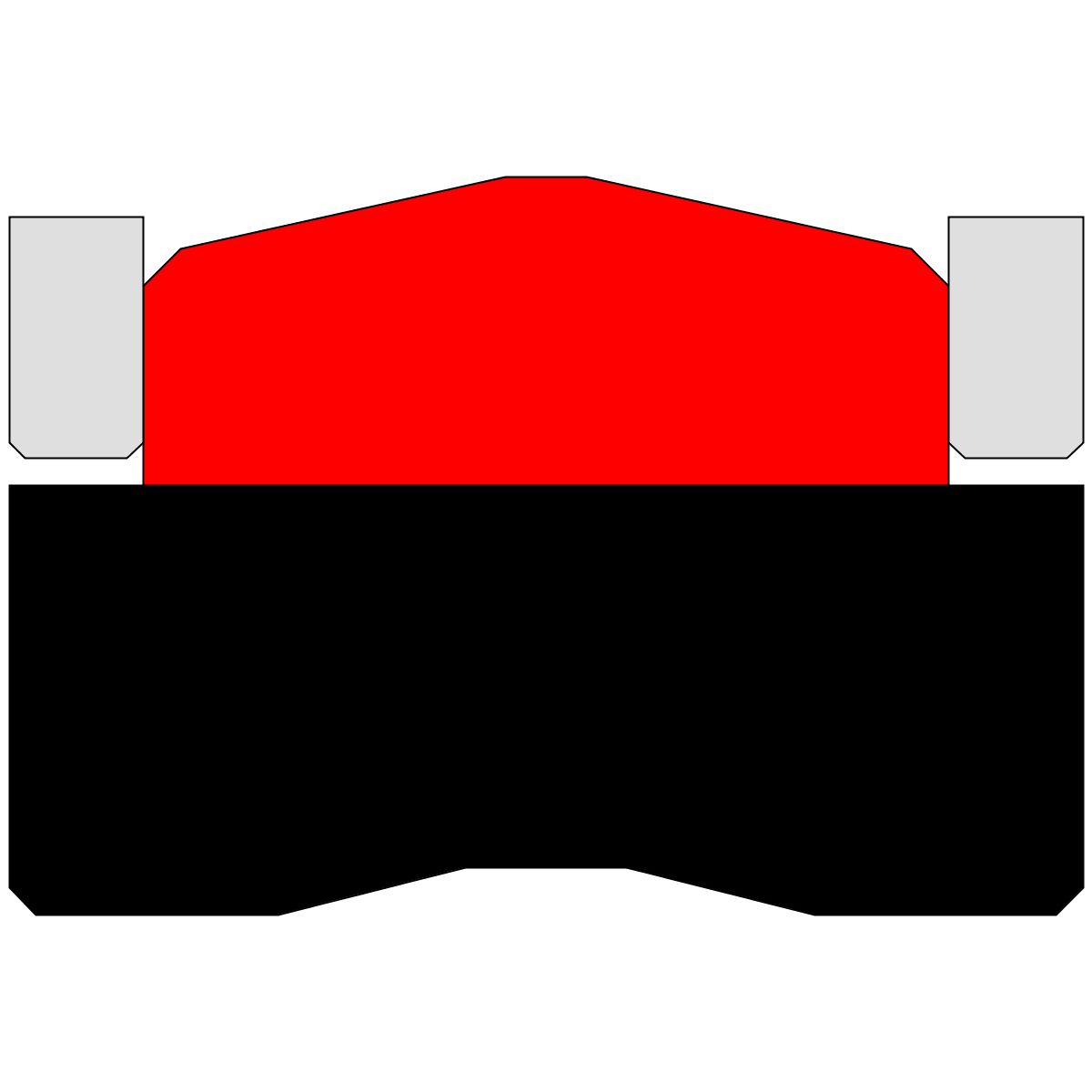

P51G
Double acting piston seal, designed with interference on the ID which provides a good static fit in the groove. Consisting of one gliding, one energizing and two back-up elements. Useable for short and long stroke lengths. Good static and dynamic sealing performance. High frictional force. No drag pressure build-up.
-30°C to +105°C
-30°C to +105°C
-3°C0 to +105°C
0.5 m/s
0.5 m/s
0.5 m/s
400 bar/5800 psi*
400 bar/5800 psi*
400 bar/5800 psi*
* (1500 bar static)
PU Red U203-95
PU MoS2 Grey U203-GM95
PU 57 MoS2 Grey U203-GM95
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE

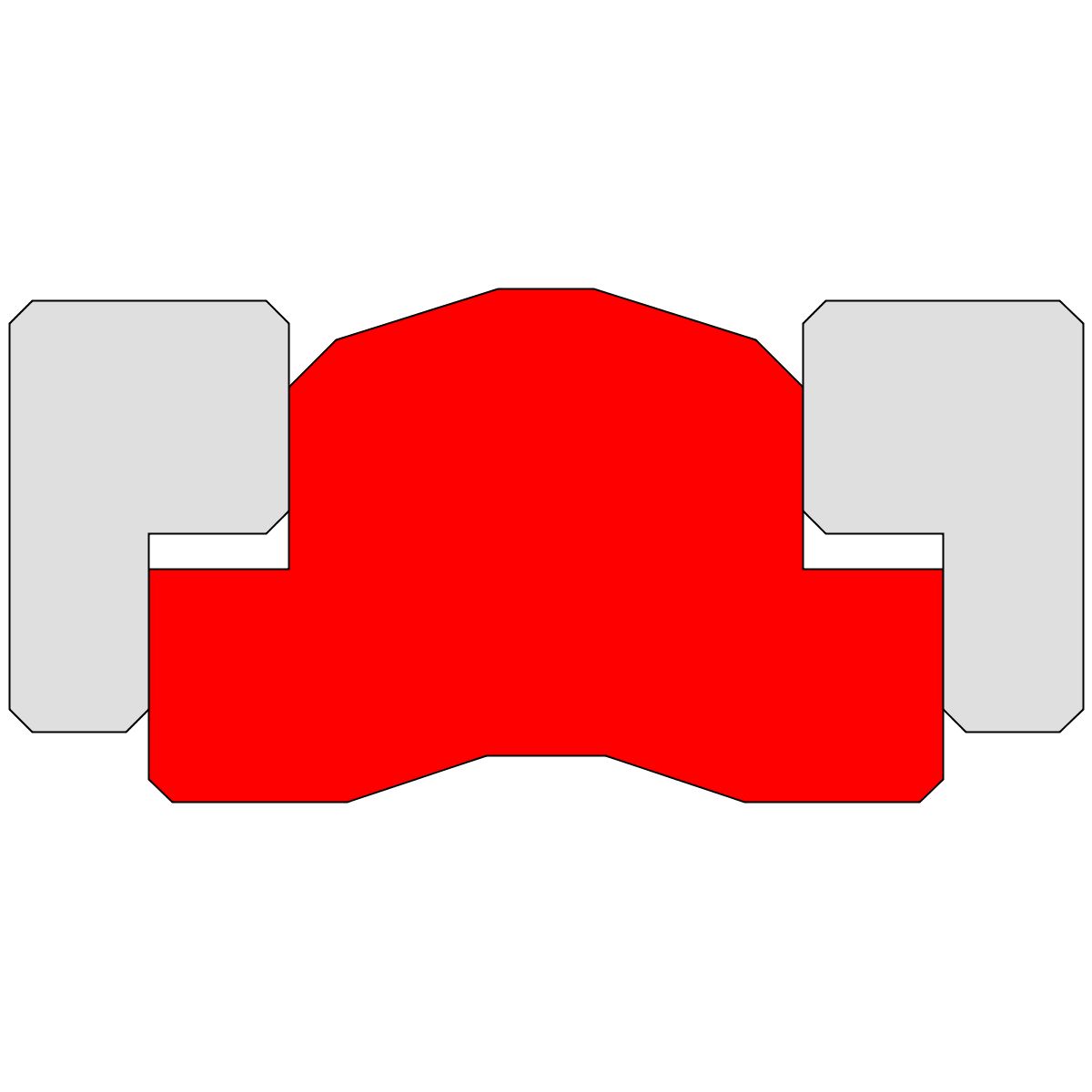

P52
Double acting piston seal, designed with interference on the ID which provides a good static fit in the groove. Consisting of one elastic sealing element and two back-up elements that also have guiding properties. Useable for short and long stroke lengths. Good static and dynamic sealing performance. High frictional force. No drag pressure build-up.
-30°C to +105°C
-30°C to +105°C
-30°C to +105°C
0.5 m/s
0.5 m/s
0.5 m/s
700 bar/10.000 psi*
700 bar/10.000 psi*
700 bar/10.000 psi*
* (1500 bar static)
PU Red U203-95
PU Red U203-95
PU Red U203-95
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE

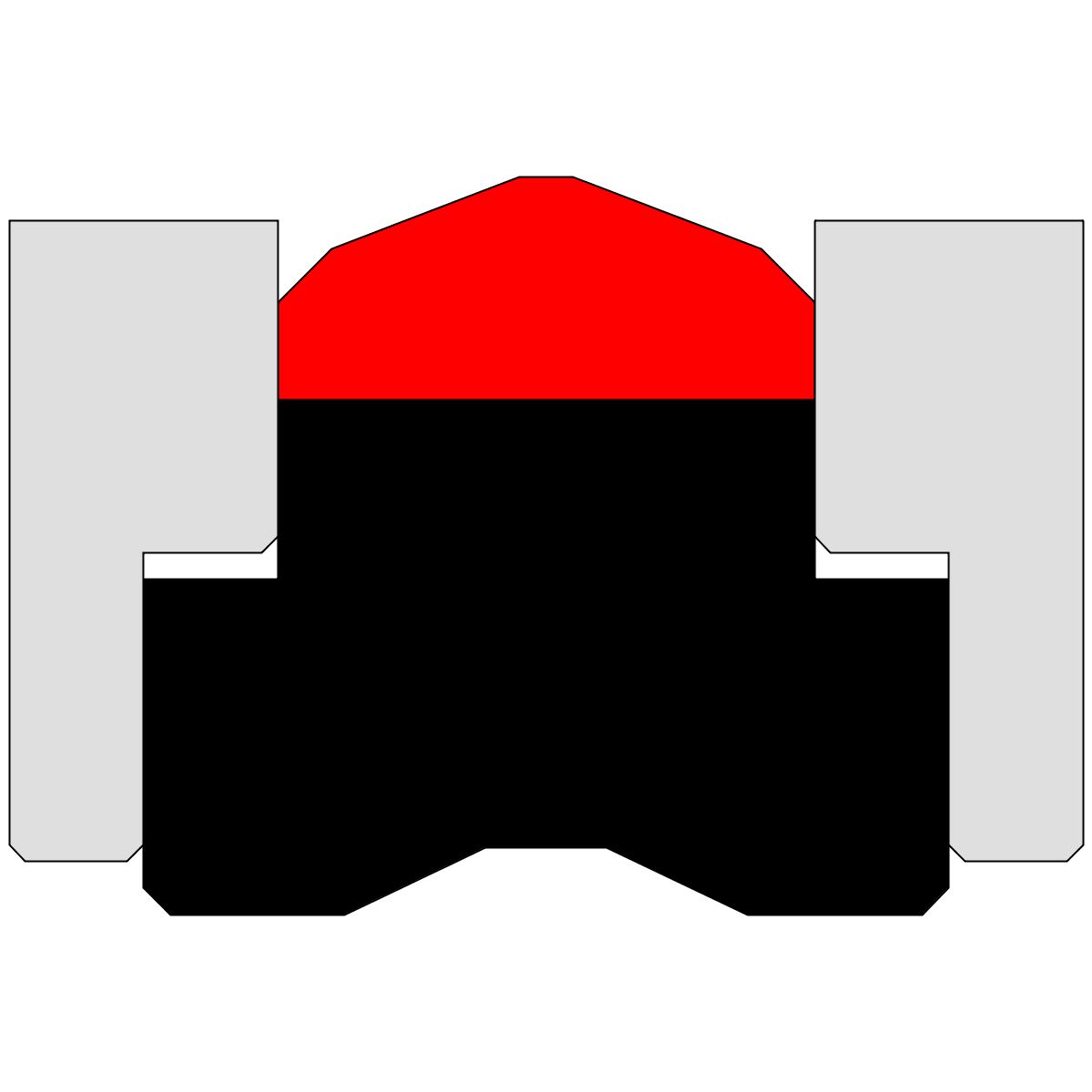

P53
Double acting piston seal, designed with interference on the ID which provides a good static fit in the groove. Consisting of one gliding, one energizing and two integrated back-up elements that also have guiding properties. Useable for short and long stroke lengths. Good static and dynamic sealing performance. High frictional force. No drag pressure build-up.
-30°C to +105°C
-30°C to +105°C
-30°C to +105°C
0.5 m/s
0.5 m/s
0.5 m/s
700 bar/10.000 psi*
700 bar/10.000 psi*
700 bar/10.000 psi*
* (1500 bar static)
PU Red U203-95
PU Red U203-95
PU Red U203-95
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE

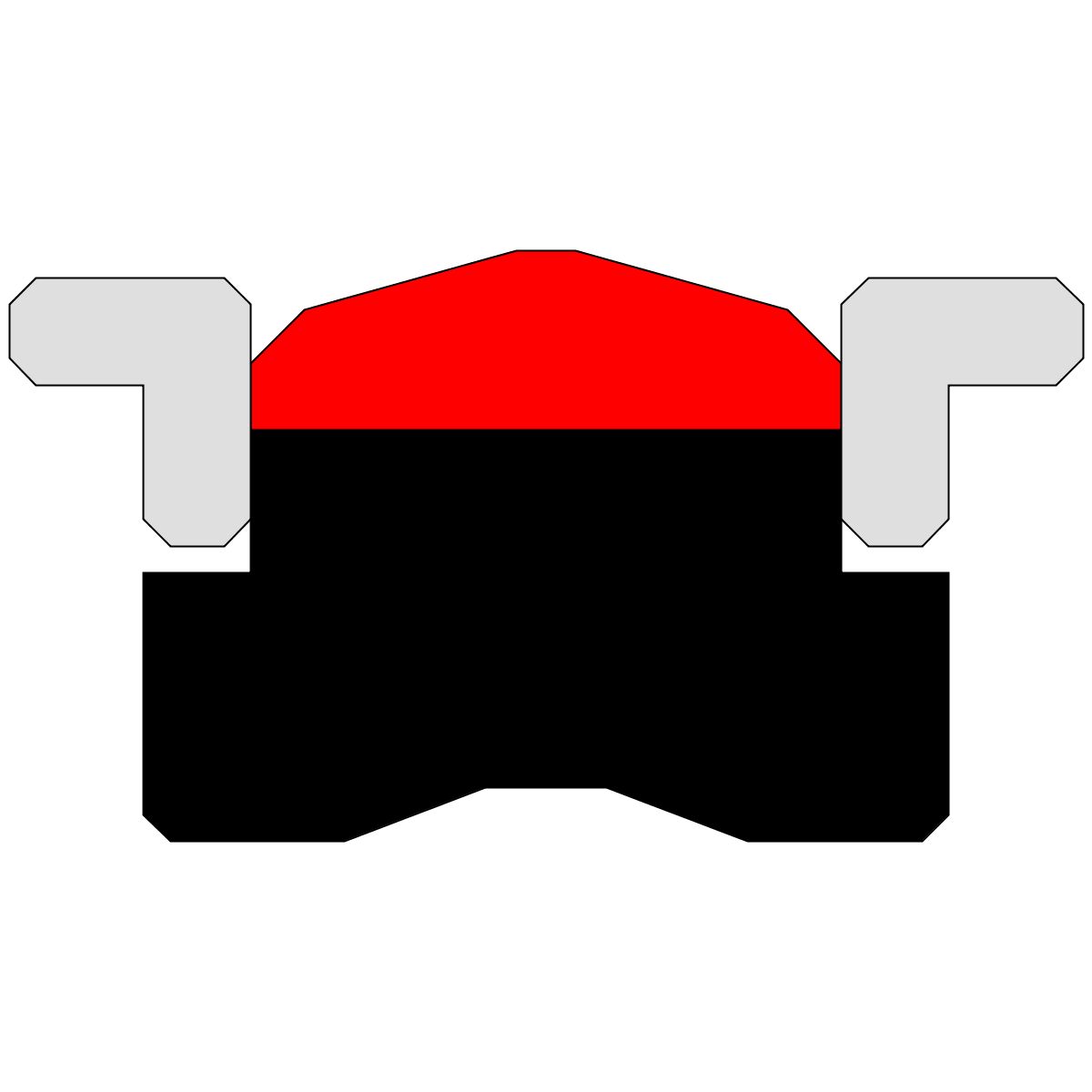

P54
Double acting piston seal, designed with interference on the ID which provides a good static fit in the groove. Consisting of one gliding, one energizing and two integrated guiding / back-up elements. Useable for short and long stroke lengths. Good dynamic and static sealing performance. High frictional force.
-30°C to +105°C
-30°C to +105°C
-30°C to +105°C
0.5 m/s
0.5 m/s
0.5 m/s
400 bar/5800 psi*
400 bar/5800 psi*
400 bar/5800 psi*
* (1500 bar static)
PU Red U203-95
PU MoS2 Grey U203-GM95
PU 57 MoS2 Grey U203-GM95
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE
NBR 85 N107-85 POM P101-WE
